2015-2023 Challenger Charger 300c Driveshaft Center Support Bearing Carrier by JXB Performance

SKU:JXB-CHR01A0
Dimensions:8x8x8
Weight:5.0 lbs
299.99000.0000
**Please check local and State laws for emissions compliance before purchasing this product**

*Bushing Stiffness
Street (Soft, Quieter)
Track (Hard, Louder)
Give Me Both!, Add $30.00

Base Price: $299.99
Customized Price: $299.99

Please select the available options below.

Options with an (*) are required.
Once you have filled in all the required options and pressed the Update Options button you will be able to add this item into your shopping cart.

  • Description
  • Product Fitment
  • Reviews (0)

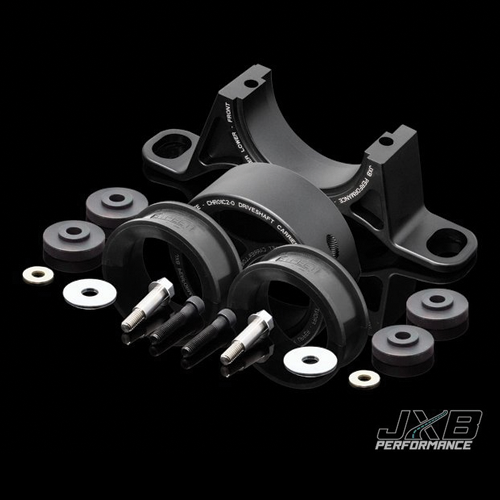

Fixes the torn rubber on your factory carrier without having to replace the driveshaft or bearing. Installs in an hour.
  • Holds the driveshaft where it should be. Isolation dampers minimize vibrations.
  • Fits all 2015+ Charger/Challenger/300 Variations
  • RWD and AWD
  • V6 and V8
  • All Trims

The Problem

The stock center support bearing carrier holds the driveshaft in place with rubber so thin about 20 lbs of force moves it from center to the end of its travel. While that’s great for making sure no NVH makes it to the cabin, it doesn’t keep the bearing centered well under load, allows the bearing to sag over time and ruin the driveshaft alignment, and creates slop in the driveline during shifts and throttle application. Over time the OEM bushing sags and becomes brittle, eventually dry rotting and cracking. Even on the best-kept cars, the stock bushing can start to from cracks in as little as 5-10 years. When the bushing lets go, it can lead to excessive vibration and clunking, and put more stress on the bearing. To make matters worse, the stock carrier is molded onto the center support bearing, so it’s not easy to replace without special tools.

The first video below was recorded on an Audi, and the 2nd on a BMW, but Chrysler (and everyone else’s) OEM carrier design is similar. The shaft is not well-supported by the soft OEM carrier, so it’s allowed to travel off-center during rapid loading and unloading. The second video shows a comparison of how much an OEM carrier gives under load and the improvement with the JXB carrier.



The Solution
This upgraded unit keeps the driveshaft firmly in place at all times, and its solid construction ensures it will never wear out. The thick bushings ensure the driveshaft cannot move from center, maintaining driveshaft alignment at all times.


The Bushings
Two options are available for the bushings, both of which are many times over better than the stock bushing. We’ve paid close attention to the NVH levels associated with this upgrade. After extensive design iterations, we’ve come up with custom isolator bushings that separate the carrier from the body of the vehicle and mounting hardware. These carriers substantially reduce NVH levels.

The street bushings absorb most of the NVH from the drivetrain. Some light NVH is possible at some speeds in the form of a soft hum. With a modified exhaust or windows down you’ll probably never hear it.

The track bushings are for those who want no-compromise drivetrain performance. These may create a substantial amount of cabin noise. Not sure which is for you? They’re interchangeable so you can try them both.


Installation
Installation doesn’t require removal of the driveshaft. The 2-part design clamps around the OEM bearing. The old carrier must be removed, so a cutting tool is required. Below is the installation of this part on an 2018 Charger Hellcat. The exact steps to access the carrier will vary slightly by model, but the removal and installation of the new carrier are the same. The basic steps are:
  • Remove any braces or splash shields preventing exhaust and heat shield removal

  • Remove or lower exhaust in area of center support bearing

  • Remove heat shielding covering center support bearing

  • Cut off OEM carrier and remove rubber support material with razorblade, leaving base layer of rubber intact on the bearing

  • Clamp new carrier around OEM bearing

  • Dodge Charger 7th gen Facelift (2015-2022)
  • Dodge Challenger 3rd gen Facelift (2015-2022)
  • Chrysler 300 2nd gen Facelift (2015-2022)
