Dodge RAM 1500 Hellcat Supercharger Adapter Kit by MMX

SKU:MMX-HLCT-ADAPT-KIT-RAM
Dimensions:26x14x10
Weight:19.0 lbs
0.00000.0000
**Please check local and State laws for emissions compliance before purchasing this product**

*Engine Selection
5.7L HEMI VVT Based Engines (2009-2023)
Map Sensor Adapter Options
MMX MAP Sensor/IAT Harness , Add $99.95Click here for more information about this option...
Adapter Kit Components
Coil Pack Extensions , Add $199.95

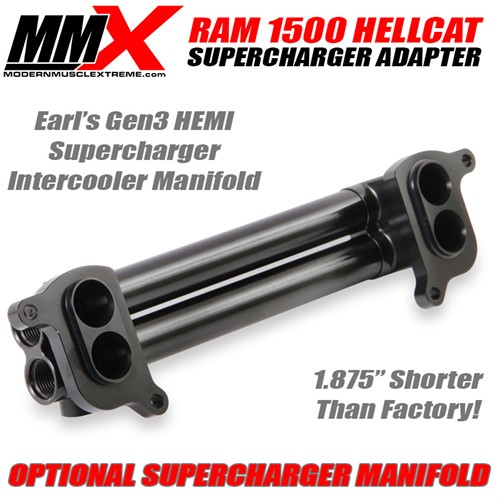

Earls Supercharger Crossover HEMI0005ERL, Add $469.95Click here for more information about this option...

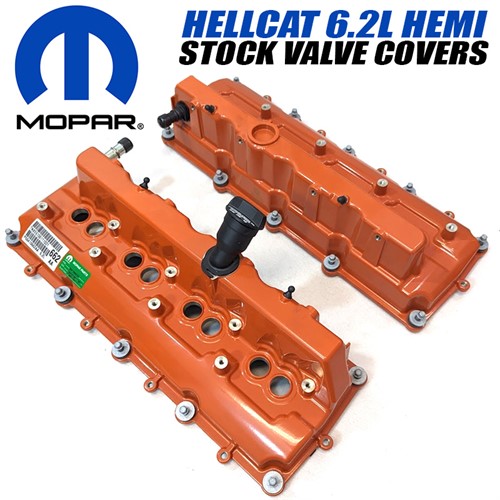

Stock New Take Off Hellcat Valve Covers, Add $999.95

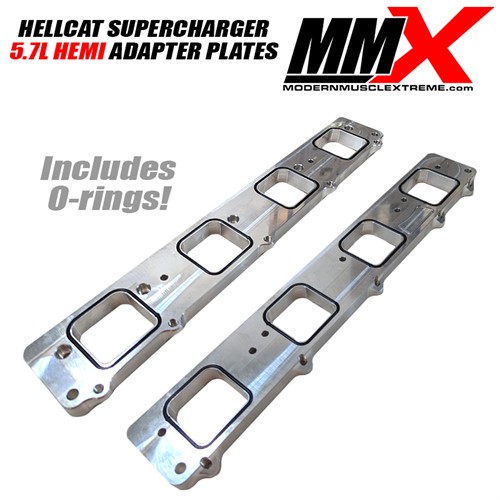

Supercharger to Head Adapter Plates with bolts, Add $466.10Click here for more information about this option...

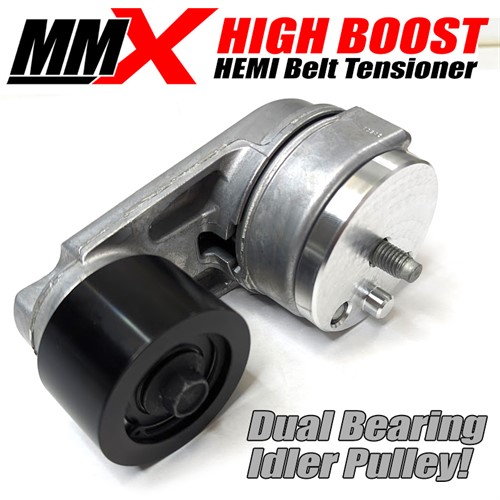

Idler Pulleys & Custom Alternator/ Belt Relocation Bracket by MMX, Add $399.95

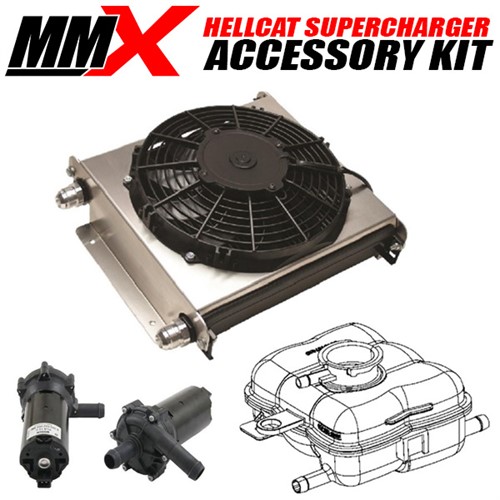

Supercharger Coolant Pump, Add $154.95
Supercharger Coolant Tank and Bracket, Add $124.10
Supercharger Heat Exchanger, Add $439.85

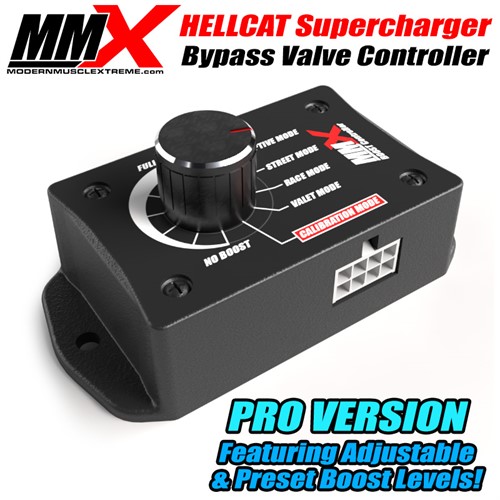

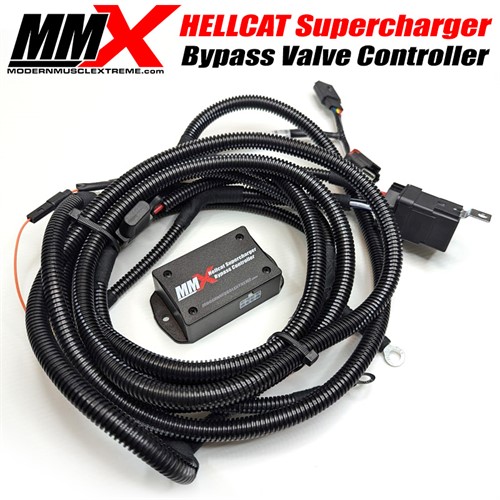

SmoothBoost Electronic Bypass and boost control, Add $649.95Click here for more information about this option...
Hellcat Supercharger Bypass Valve 68170670AB, Add $159.95

Base Price: $0.00
Customized Price: $0.00

Please select the available options below.

Options with an (*) are required.
Once you have filled in all the required options and pressed the Update Options button you will be able to add this item into your shopping cart.

  • Description
  • Product Fitment
  • Reviews (0)

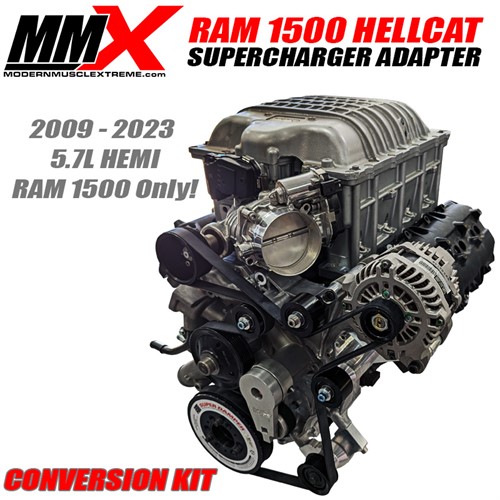

Hellcat Supercharger adapter kit for your 2009-2023 RAM 1500 5.7!

This kit allows you to select the needed adapter plates and the front accessory drive (which allows you to use the stock spacing and stock accessory drive system) for the Hellcat Supercharger.  The kit can be customized by selecting different options to tailor the kit to your needs!

Notes:
  • This fits non E-Torque Engines Only (This applies to only 2019+ DT series Rams)
  • Air conditioning Lines will need to be altered/moved for the new alternator location
  • Alternator Hot Wire, and Plug may need to be extended due to new alternator location
  • No Timing Cover Grinding or Clearance is Required
  • Early Hydraulic Power Steering Trucks will require the removal of the power steering pump as our lower idler bracket and alternator bracket will have to go in its place.
  • This is not a "Full Kit". We offer 90% of what is needed to do the install, but there will be misc. clamps, hoses, bolts, and wiring that will be up to the end user to source that is required to do this conversion.
  • Aftermarket Valve Covers with breathers and oil fill or OEM Hellcat Valve covers are required.
  • Custom fabricated cold air intake is required
  • Earls, SDG, or OEM TRX Rear Water Crossover is required for Firewall Clearance (OEM car supercharger water crossover will hit the firewall)
  • This Kit requires a METCO supercharger pulley. MMX Recommends a 3.35 Upper Diameter for stock engines



VVT
5.7L HEMI 2009 - Present
