422 Hellcat 6.2L HEMI Based Stroker Kit by Modern Muscle Performance

SKU:MMP-422-HLCT-STRKR
Dimensions:27x13x13
Weight:70.0 lbs
3395.00000.0000
**Please check local and State laws for emissions compliance before purchasing this product**

*Bore Size Options
Standard Bore Size
+.005" Bore Size (Subject to Availability)
+.010" Bore Size (Subject to Availability)
Balance
Please send crankshaft unbalanced ( I REALIZE THE CRANKSHAFT MUST BE BALANCED BEFORE FINAL ASSEMBLY), Subtract -$200.00
Optional Piston Pin Upgrades
.200" Wall H13 DLC (Diamond-Like Coated) Tool Steel Pin Upgrade, Add $300.00
Bearing Upgrade Options
Coated Rod Bearings, Add $253.00
Coated Rod Bearings and Premium Main Bearings, Add $353.00
Optional Windage Tray
Please Include the MMX HEMI Stroker Windage Tray, Add $139.95
HEMI Crankshaft Bolt Option  Click here for more information about this option...
Please Add HEMI Crankshaft Bolt, Add $29.95Click here for more information about this option...
Oil Squirter Block Off Option
Add HEMI Oil Squirter Block Off Plugs by MMX, Add $49.95

Base Price: $3,395.00
Customized Price: $3,395.00

Please select the available options below.

Options with an (*) are required.
Once you have filled in all the required options and pressed the Update Options button you will be able to add this item into your shopping cart.

  • Description
  • Product Fitment
  • Reviews (0)
*PROFESSIONAL INSTALLATION AND CLEARANCE CONFIRMATION REQUIRED*

MMX Hellcat Rotating Assemblies

Modern Muscle Performance / ModernMuscleXtreme.com is proud to offer our premium solution for those looking to get more CID’s out of their 6.2L HEMIs! Our custom spec forged 2618 pistons manufactured by MAHLE Motorsports feature all of the specifications that have set our piston and rod solutions apart from the competition.

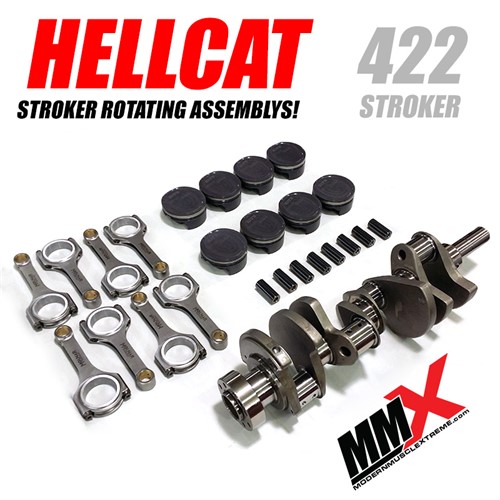

MMX 422 Stroker Rotating assembly includes:
  • Molnar 4.00 Stroke Crankshaft
  • Molnar 6.200 connecting rod

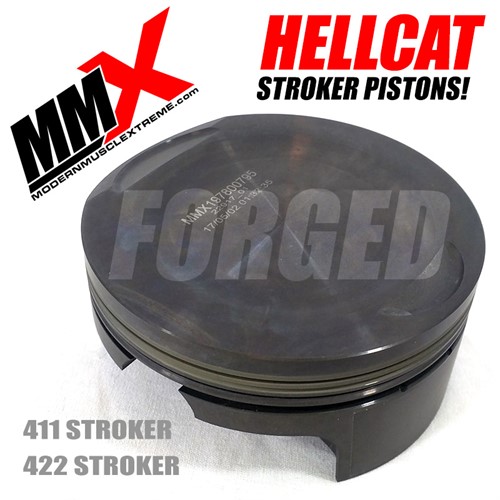

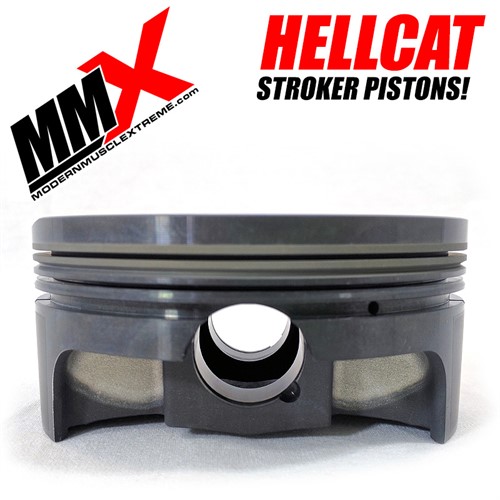

  • Mahle 4.090 Custom Stroker Piston (4.095 and 4.100 available)

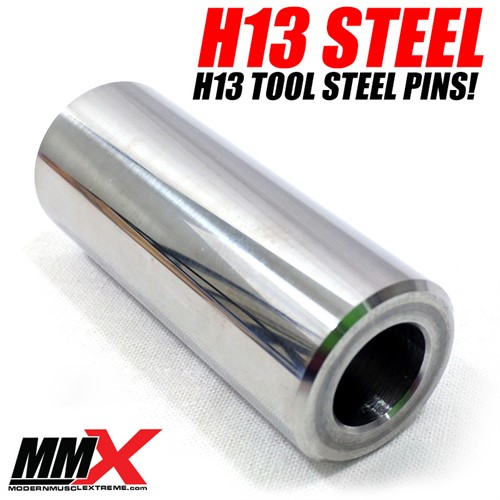

  • H13 Tool Steel Pins Standard

The kit design features include:
  • 2618 Aluminum Alloy Forgings

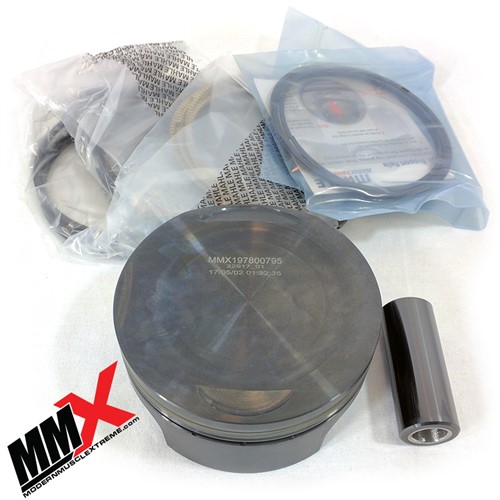

  • 1mm 1mm, 2mm Exclusive Steel Ring Package
  • Napier Second Ring for Enhanced Oil Control
  • Grafal Anti-Friction Coating on Skirts
  • Anodized Top Ring Land
  • Inverted Dome Designed by Modern Muscle Performance
  • Accumulator Groove - a V shaped groove machined in the 2nd ring land to collect excess blow-by between the top and second ring. This groove collects residual gasses during combustion and alleviates top ring flutter while increasing ring seal.

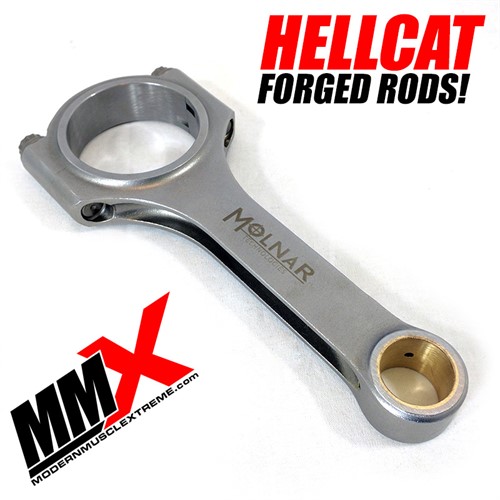

  • Molnar Premium Alloy Rods Featuring 7/16 Proprietary Design ARP2000 Bolts
  • Molnar Premium Alloy Full Radius Crank Shaft – Precision Balanced In-House by Molnar Technologies

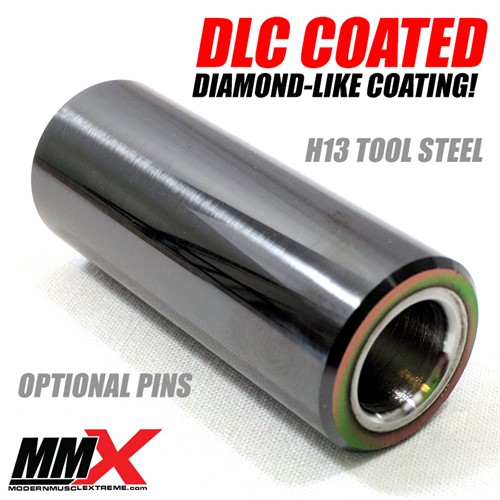

  • Optional DLC Pin Available (Diamond Like Coating for increased surface hardness and lower friction)


Hellcat 6.2L HEMI
