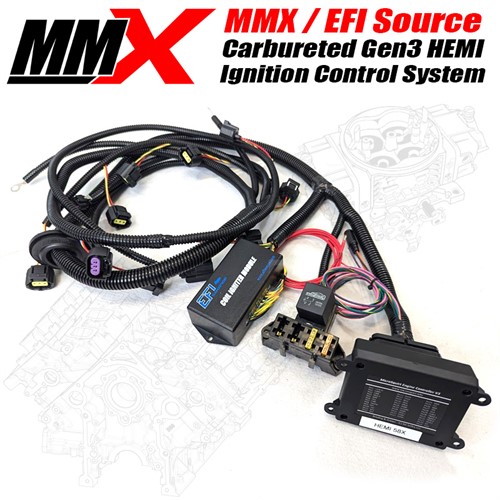

This is an all-new Carbureted ignition control system by MMX/EFI source! This is a very simple system that only requires two wires to run! Simply hook up the large red wire to a battery positive source (hot all the time) and the small red wire to a switched ignition source, and you are up and running a carburetor on a Gen3 HEMI! The engine wiring harness is very simple, and only requires the coils, crank sensor, and MAP sensor to be connected. (MAP sensor connection is not required for full race applications). NOTE: If you do not plan to use a MAP sensor, you MUST tune the microsquirt.
This system will run 09-2024 5.7, 6.4, 6.2 58 tooth reluctor applications, as well as 03-08 5.7 and 05-10 6.1 applications.
2009+ 58 tooth applications must use the 09-12 230AA Crankshaft sensor for proper operation!
Check out our YouTube video below for more information!
Gen3 HEMI Carburetor Ignition Control System by MMX and EFI Source fits the following vehicle(s):
Gen3 HEMI 5.7L, 6.1L, 6.2L and 6.4L
