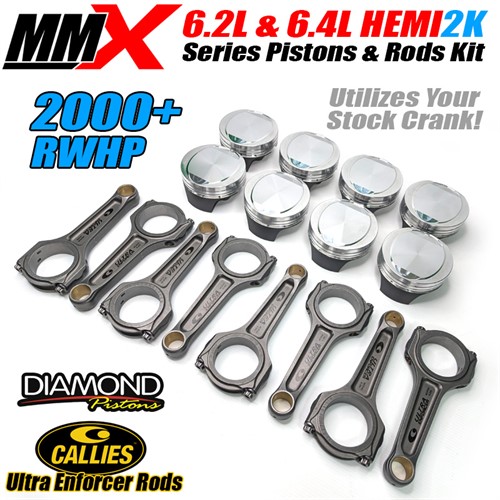

6.2L & 6.4L HEMI2K Series Piston and Rod kits by MMX! This Piston and Rod Kit features a 2K Series Diamond box forging piston, and Callies Ultra Enforcer rods! If you are looking to make max power with an OEM 6.2/6.4 crankshaft, look no further!
Specs:
- 4.100 Bore Diamond 2K Series Piston Set
- HD .250W Wrist Pins
- 4.100 Bore Ringset 1.5/1.5/3mm
- Compresion Ratio 6.2L 10.4:1 W .040 Gasket (73cc 6.4 or 6.2 Head)
- Compresion Ratio 6.4L 10.0:1 W .040 Gasket (73cc 6.4 or 6.2 Head)
- Callies Ultra Enforcer Rods (2,400HP Capable) U14345
NOTE: This kit requires crankshaft balancing (with heavy metal required) ,and block machine work. This is not a "Drop in" Kit!
Piston Features:
- 3D milling on piston crowns for ready to install finish
- Inboard forging design with fully machined under crown for maximum strength
- Valve pockets Designed to work with 6.2L Hellcat cylinder heads
- Side gas ports for better ring seal
- Moly skirt coating for friction loss and skirt wear protection
- Top ring down dimension: .250" 1.050cd .300" 1.275cd
- Ratios figured for .040 head gasket @ 9.280 Deck
- Premium 1.5mm x 1.5mm x 3.0mm ring package included
- Premium H-13 .250W wrist pins included chamfered for round wire locks
- Valve pocket depth: 0.130" intake and sym exhaust
- 2618 material for High HP-NOS-Boost applications - rated for 2000HP
Callies Enforcer Rod Features:
- Produced from clean 4330V TimkenSteel product
- Intended for boosted applications
- Buckle resistant I-Beam design
- Increased mass, pressure Angle Arches, guarantee wrist pin stability
- Robust tower flanges provide enhanced resistance to bend and twist
- Up to 250 HP per cylinder
- L-19 bolts, Custom Age bolts also available
6.2L 6.4L HEMI 2k Series Piston and Rod Kit fits the following vehicle(s):
6.2L and 6.4L HEMI Engines
