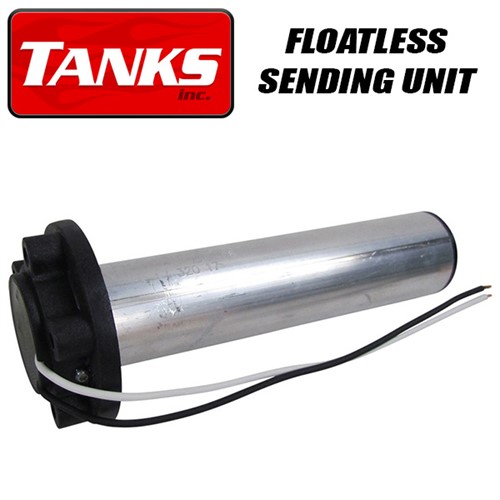

Floatless Universal Fuel Sending Unit by Tanks Inc

SKU:TAN-UNI-FLTLSSENDING-UNIT
Dimensions:8x8x16
Weight:5.0 lbs
99.95000.0000
**Please check local and State laws for emissions compliance before purchasing this product**

*Choose Your Sending Unit Model
T-SW-**: SW Type 5 Hole Design - 240-33 Ohms
T-VDO-**: VDO Type 5 Hole Design - 10-180 Ohms
T-ORG-**: Early Ford & Mopar Type 5 Hole Design - 73-10 Ohms
*Sender Tube Length Options

Base Price: $99.95
Customized Price: $99.95

Please select the available options below.

Options with an (*) are required.
Once you have filled in all the required options and pressed the Update Options button you will be able to add this item into your shopping cart.

  • Description
  • Product Fitment
  • Reviews (0)
Most aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements. This revolutionary design comes with many benefits! This is ideal for applications where a conventional swing arm will not fit due to clearance issues. The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh. The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out. It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware. This sender is available in five different ohm ranges: 0-30, 0-90, 73-10, 240-33 and 10-180 and is compatible with gasoline, diesel, oils, and many other fluids.

Model Specifications:
  • 240-33 Ohms - Standard Aftermarket -  T-SW-**
  • 10-180 Ohms - VDO gauges - T-VDO-**
  • 73-10 Ohms - Early Ford & Mopar - T-ORG-**

** Represents the size of tube length (1" increments) from the bottom of the mounting flange.  At least 1/4" of clearance is needed from the end of the tube to the bottom of the tank.

Senders with tube lengths from 5"-10" are $98 each.
Senders with tube lengths of 11" to 24" are $109 each.

Tube senders that are 11" and longer are non-returnable and some sizes may take up to 3-4 weeks to ship.

Universal Fit
